What is LNG and how is it cutting global shipping emissions?

5 July 2019

Sustainable business

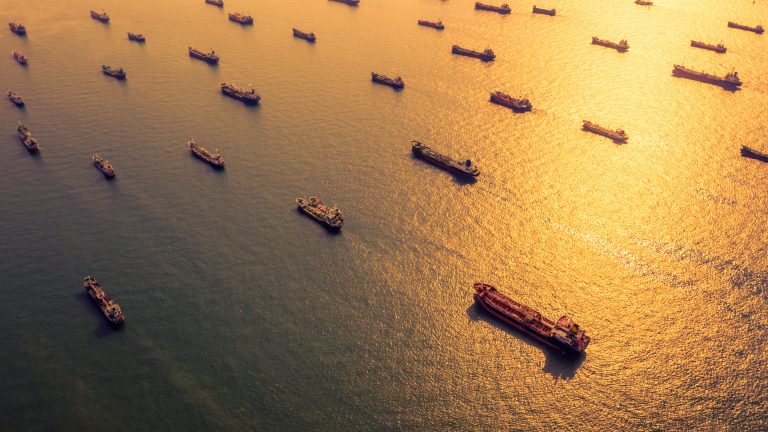

Oil tanker, Gas tanker operation at oil and gas terminal.

Shipping is widely considered the most efficient form of cargo transport. As a result, it’s the transportation of choice for around 90% of world trade. But even as the most efficient, it still accounts for roughly 3% of global carbon dioxide (CO2) emissions.

This may not sound like much, but it amounts to 1 billion tonnes of CO2 and other greenhouse gases per year – more than the UK’s total emissions output. In fact, if shipping were a country, it would be the sixth largest producer of greenhouse gas (GHG) emissions. And unless there are drastic changes, emissions related to shipping could increase from between 50% and 250% by 2050.

As well as emitting GHGs that directly contribute towards the climate emergency, big ships powered by fossil fuels such as bunker fuel (also known as heavy fuel oil) release other emissions. These include two that can have indirect impacts – sulphur dioxide (SO2) and nitrogen oxides (NOx). Both impact air quality and can have human health and environmental impacts.

As a result, the International Maritime Organization (IMO) is introducing measures that will actively look to force shipping companies to reduce their emissions. In January 2020 it will bring in new rules that dictate all vessels will need to use fuels with a sulphur content of below 0.5%.

One approach ship owners are taking to meet these targets is to fit ‘scrubbers’– devices which wash exhausts with seawater, turning the sulphur oxides emitted from burning fossil fuel oils into harmless calcium sulphate. But these will only tackle the sulphur problem, and still mean that ships emit CO2.

Another approach is switching to cleaner energy alternatives such as biofuels, batteries or even sails, but the most promising of these based on existing technology is liquefied natural gas, or LNG.

What is LNG?

In its liquid form, natural gas can be used as a fuel to power ships, replacing heavy fuel oil, which is more typically used, emissions-heavy and cheaper. But first it needs to be turned into a liquid.

To do this, raw natural gas is purified to separate out all impurities and liquids. This leaves a mixture of mostly methane and some ethane, which is passed through giant refrigerators that cool it to -162oC, in turn shrinking its volume by 600 times.

The end product is a colourless, transparent, non-toxic liquid that’s much easier to store and transport, and can be used to power specially constructed LNG-ready ships, or by ships retrofitted to run on LNG. As well as being versatile, it has the potential to reduce sulphur oxides and nitrogen oxides by 90 to 95%, while emitting 10 to 20% less CO2 than heavier fuel alternatives.

The cost of operating a vessel on LNG is around half that of ultra-low sulphur marine diesel (an alternative fuel option for ships aiming to lower their sulphur output), and it’s also future-proofed in a way that other low-sulphur options are not. As emissions standards become stricter in the coming years, vessels using natural gas would still fall below any threshold.

The industry is starting to take notice. Last year 78 vessels were fitted to run on LNG, the highest annual number to date.

One company that has already embraced the switch to LNG is Estonia’s Graanul Invest. Europe’s largest wood pellet producer and a supplier to Drax Power Station, Graanul is preparing to introduce custom-built vessels that run on LNG by 2020.

The new ships will have the capacity to transport around 9,000 tonnes of compressed wood pellets and Graanul estimates that switching to LNG has the potential to lower its CO2 emissions by 25%, to cut NOx emissions by 85%, and to almost completely eliminate SO2 and particulate matter pollution.

Is LNG shipping’s only viable option?

LNG might be leading the charge towards cleaner shipping, but it’s not the only solution on the table. Another potential is using advanced sail technology to harness wind, which helps power large cargo ships. More than just an innovative way to upscale a centuries-old method of navigating the seas, it is one that could potentially be retrofitted to cargo ships and significantly reduce emissions.

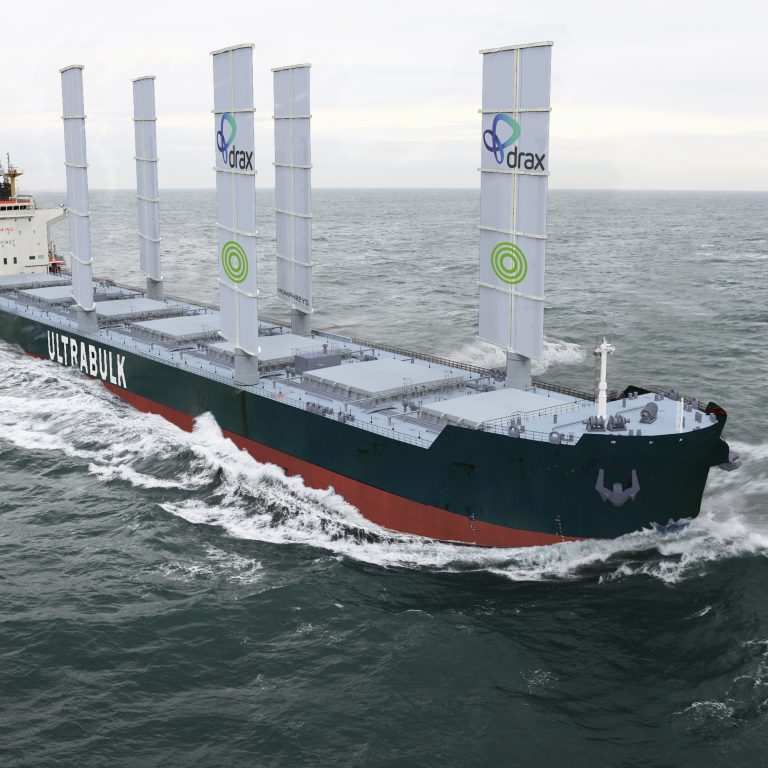

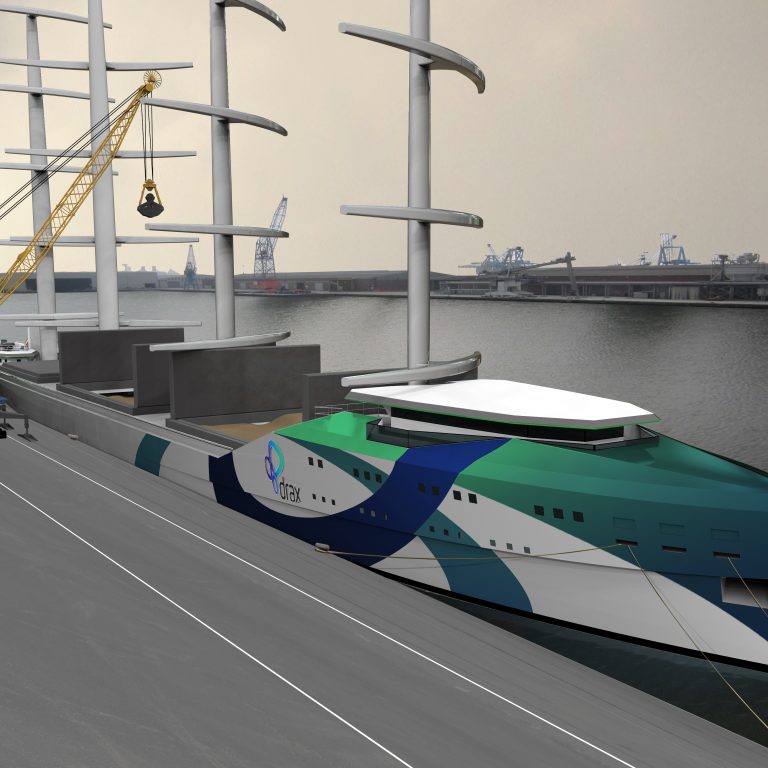

Drax is currently taking part in a study with the Smart Green Shipping Alliance, Danish dry bulk cargo transporter Ultrabulk and Humphreys Yacht Design, to assess the possibility of retrofitting innovative sail technology onto one of its ships for importing biomass.

Manufacturers are also looking at battery power as a route to lowering emissions. Last year, boats using battery-fitted technology similar to that used by plug-in cars were developed for use in Norway, Belgium and the Netherlands, while Dutch company Port-Liner are currently building two giant all-electric barges – dubbed ‘Tesla ships’ – that will be powered by battery packs and can carry up to 280 containers.

Then there are projects exploring the use of ammonia (which can be produced from air and water using renewable electricity), and hydrogen fuel cell technology. In short, there are many options on the table, but few that can be implemented quickly, and at scale – two things which are needed by the industry. Judged by these criteria, LNG remains the frontrunner.

There are currently just 125 ships worldwide using LNG, but these numbers are expected to increase by between 400 and 600 by 2020. Given that the world fleet boasts more than 60,000 commercial ships, this remains a drop in the ocean, but with the right support it could be the start of a large scale move towards cleaner waterways.

People strategy

21 March 2018

Sustainable business

Our people strategy: One Drax

Following extensive consultation with employees, we developed our people strategy to 2020 – One Drax. It has been designed to address the key issues that were raised by employees in our 2016 employee survey, such as the need for clearer learning and development programmes and more effective internal communications. The strategy focuses on valuing our people, driving business performance and developing talent to deliver our strategic and operational objectives.

We launched the five aspects of the strategy: my career, my performance, our behaviours, our reward, my recognition. In 2018, we will focus on all of these aspects and, in particular, our reward, my recognition and my career.

Behavioural framework

We have developed a number of HR programmes in line with our people strategy. The foundation of this is a new behavioural framework that identifies positive behaviours reflecting our Company values: honest, energised, achieving, together. The behaviours are integrated into all areas of our people management processes at Drax Group. The HR team consulted with one in five employees across the business, including senior leaders and union representatives, to develop the framework.

In 2018 we will further embed the behavioural framework and our Company values into our culture by developing an online tool for employees to evaluate how they demonstrate the behaviours.

Developing our people / apprenticeships

At Drax Power, we have a proud history of apprenticeships, with the majority remaining to work at Drax and progressing through the Company.

Mick Moore joined Drax on 7 September 1976 as a craft apprentice.

On completion of his apprenticeship, Mick continued to further his education and completed an HNC in Electrical & Electronic Engineering. After a 10-year break he resumed his further education, graduating from Humberside & Lincolnshire University with a degree in Electronics & Control Engineering, achieving Chartered Engineering status with the Institute of Electrical Engineers in 1999.

Having worked at Drax for 41 years, Mick’s career has included roles such as Instrument Mechanic, various engineering grades from Assistant Engineer to Process Control Engineer & Maintenance Section Head. Mick is now the Electrical, Control & Instrumentation Engineering Section Head for Drax Power and is currently responsible for a team of 51 people.



The wooden buildings of the future

22 January 2018

Sustainable bioenergy

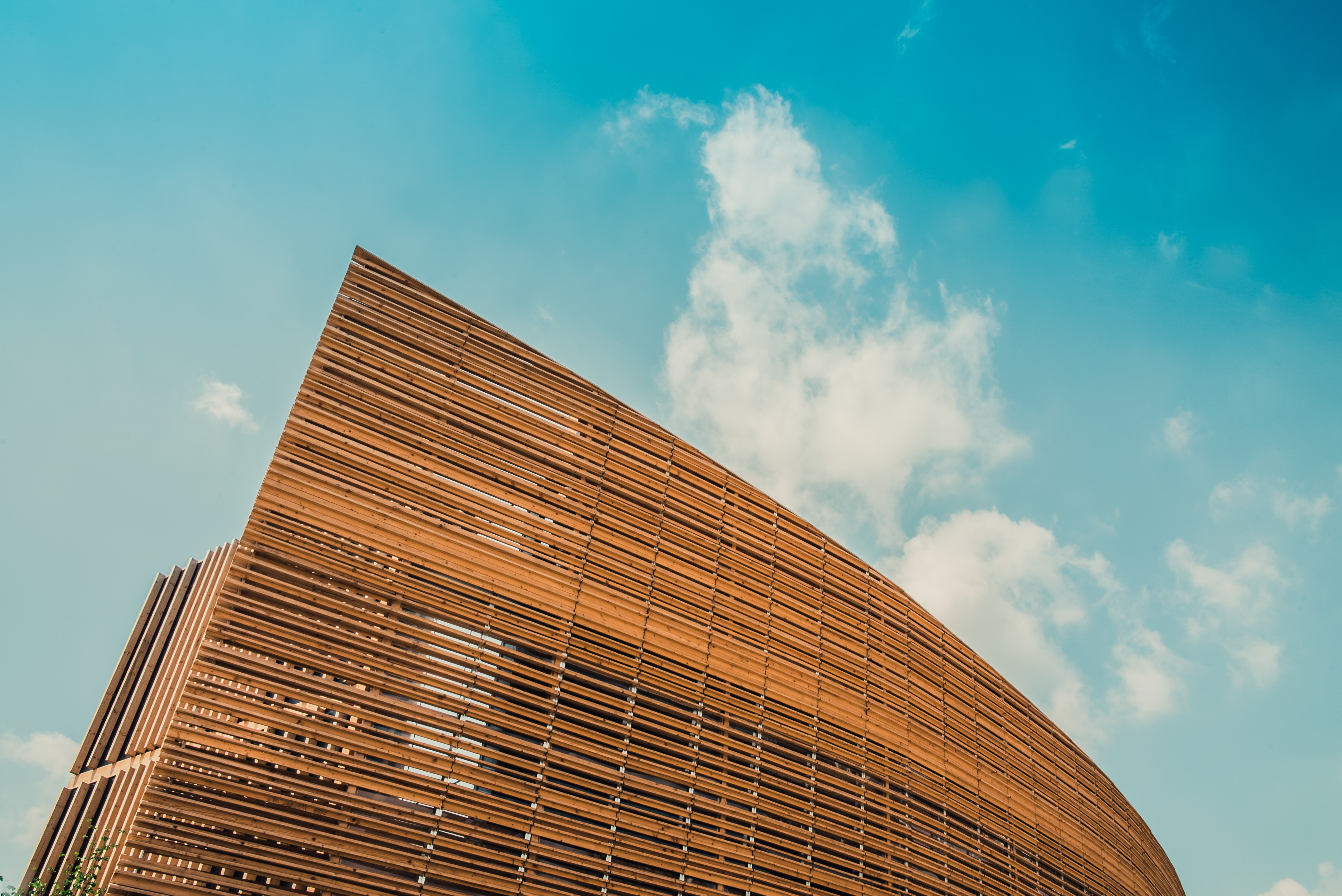

Wooden building with blue sky background

When we think of modern cities and the buildings within them, we often think of the materials they’re constructed from – we think of the concrete jungle.

Since the 19th century, steel, glass and concrete enabled the building of bigger and more elaborate buildings in rapidly-growing cities, and those materials quickly came to define the structures themselves. But today that could be changing.

New technologies and building techniques mean wood, a material humans have used in construction for millennia, is making a comeback and reducing the carbon footprint of our buildings too.

Return of the treehouse

Civilisation has been building structures from wood for longer than you may realise.

Horyu-ji Temple in Nara, Japan

The 32-metre tall Pagoda of Horyu-Ji temple in Japan, was built using wood felled in 594 and still stands today. The Sakyumuni Pagoda of Fogong Temple in China is nearly twice as tall with a height of 67 metres. It was built in 1056.

Today, wood is once again finding favour.

The 30-metre tall Wood Innovation and Design Centre of the University of British Columbia (UNBC) in Canada was completed in October 2014 and is among the first of this new generation of wooden buildings. And they’re only getting bigger.

This year, the completion of the 84-metre, 24-storey HoHo Tower in Vienna will make it the tallest wooden building in the world. But this will be far surpassed if plans for the Oakwood Tower in London are approved. Designed by a private architecture firm and researchers from the University of Cambridge, the proposed building will be 300-metres tall if construction goes ahead, making it London’s second tallest structure after The Shard. And it would be made of wood.

Falling back in love with wood

Wood construction fell out of favour in the 19th century when materials like steel and concrete, became more readily available. But new developments in timber manufacturing are changing this.

Researchers in Graz, Austria, discovered that by gluing strips of wood with their grains at right angles to each other the relative weakness of each piece of wood is compensated. The result is a wood product known as cross-laminated timber (CLT), which is tougher than steel for its weight but is much lighter and can be machined into extremely precise shapes. Think of it as the plywood of the future, allowing construction workers to build bigger, quicker and lighter.

Glued laminated timber, commonly known as glulam, is another technology technique enabling greater use of wood in more complex construction. Manufactured by bonding high-strength timbers with waterproof adhesives, glulam can also be shaped into curves and arches, pushing wood’s usage beyond straight planks and beam.

These dense timbers don’t ignite easily either. They are designed to act more like logs than kindling, and feature an outer layer that is purposefully designed to char when exposed to flame, which in turn insulates the inner wood.

Susceptibility to mould, insect and water damage is indeed a concern of anyone building with wood, but as the centuries-old Pagodas in Japan and China demonstrate, care for wood properly and there’s no real limit to how long you can make it last.

So, wood is sturdy. But so is steel – why change?

Green giant

Construction with concrete and steel produces an enormous carbon footprint. Concrete production on its own accounts for 5% of all our carbon emissions. But building with wood can change that. UNBC’s Innovation and Design centre saved 400 tonnes of carbon by using wood instead of concrete and steel.

On top of that, building with wood ‘freezes’ the carbon captured by the trees as they grow. When trees die naturally in the forest they decompose and release the carbon they have absorbed during growth back in the atmosphere. But wood felled and used to construct a building has captured that carbon for as long as it stands in place. A city of wooden buildings could be a considerable carbon sink.

This can have further ripple effects. The more timber is required for construction, the more it increases the market for wood and the responsibly-managed forests that material comes from. And the more forests that are planted, and managed with proper governance, the more carbon is absorbed from the atmosphere.

According to research from Yale university, a worldwide switch to timber construction would, on its own, cut the building industry’s carbon emissions by 31%.

Granted, that will be a difficult task. But if even a fraction of that can be achieved, it could mean a future of timber buildings and greener cities.
