How river-powered hydro schemes work

21 February 2020

Power generation

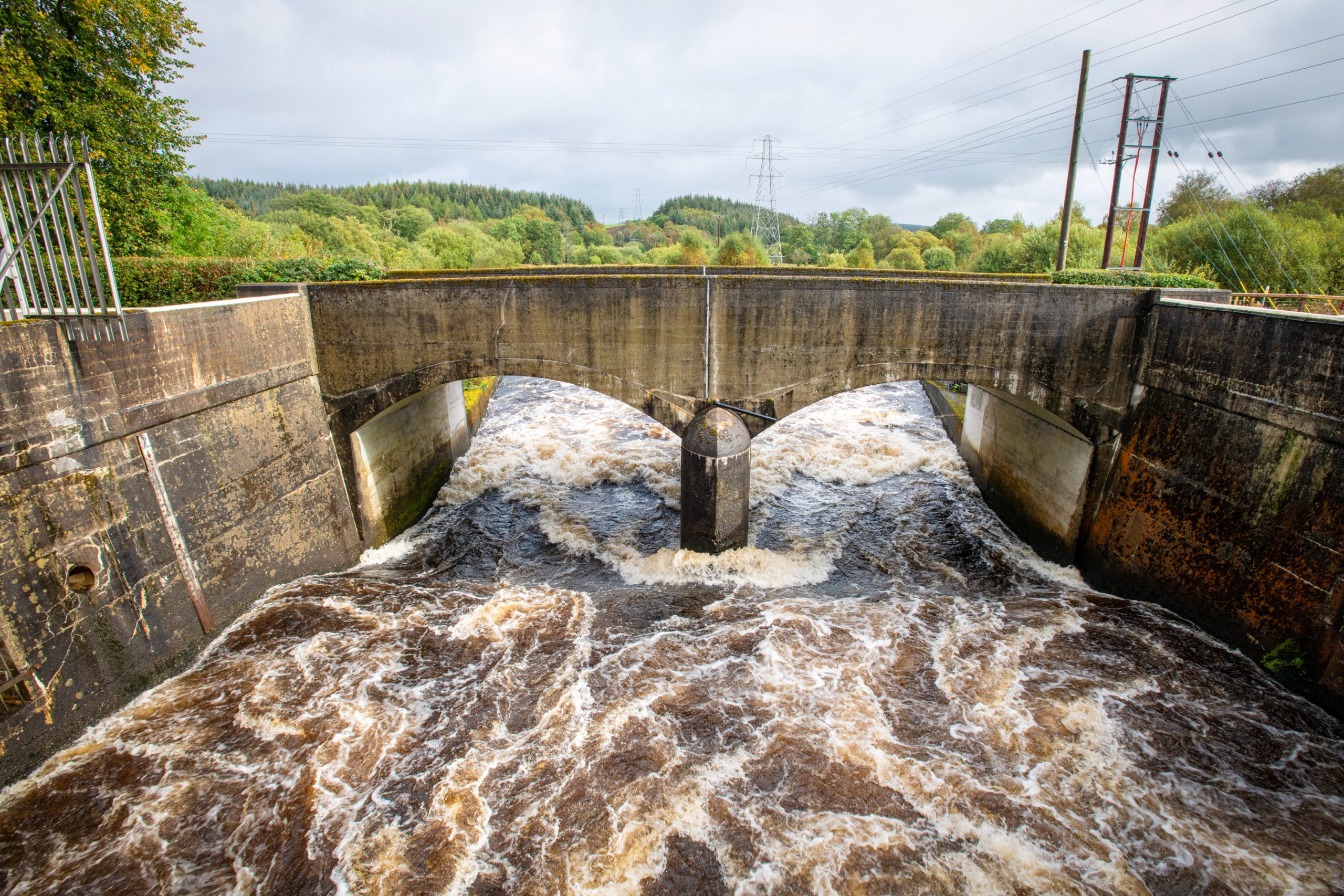

Waterflow outside Glenlee Power Station

Hydro power is one of the most widespread sources of electricity generation in the world – it is also one of the biggest. Nine of the world’s ten largest power stations are hydro powered. Facilities such as the Three Gorges Dam on China’s Yangtze River and the Itaipu Dam (pictured below) on the Brazil-Paraguay border are capable of generating massive amounts of electricity.

Itaipu Dam, hydroelectric power station on the Brazil-Paraguay border

But hydropower can also be very effective at a smaller, more local level, using relatively small rivers. These smaller hydro facilities can bring renewable electricity to remote areas and serve local needs. All they need is an abundance of flowing water to spin their turbines.

In Scotland, two schemes are making use of the country’s plentiful water sources to help the local community, the economy and the surrounding environment.

Turning river waterflow into power

The Lanark and Galloway hydropower schemes are both located in rural Scotland and have been generating power for nearly a century. Despite being more than 95 kilometres apart, they operate in very similar ways.

Lanark (which includes two power stations – Bonnington, with a capacity of 11 MW, and Stonebyres, with a capacity of 6 MW) sits on the River Clyde and began generating power in 1926, making it one of the oldest hydro-electric plants in Great Britain.

Galloway soon followed, coming online in the mid-1930s. It includes a total of six power stations – Glenlee, Tongland, Kendoon, Drumjohn, Earlstoun and Carsfad – eight dams and a network of tunnels and pipelines, giving it a capacity of 109 MW.

Kendoon Power Station Turbine Hall

Kendoon Power Station Turbine Hall

“There was always potential for hydro in the Galloway Hills but there wasn’t demand for 100 MW of power,” explains Stuart Ferns, Operations and Maintenance Manager on the Lanark and Galloway hydro schemes. “However, when the national grid was established in the 1920s it enabled surplus power to be transmitted beyond the local area to Glasgow and further afield.”

Unlike Lanark, which is situated about halfway down the River Clyde, the Galloway scheme spans the entirety of its river system from Loch Doon in the North to Tongland in the south. Both, however, cover a similarly sized catchment area of roughly 1,000 square kilometres.

Where they do differ is in the type of hydropower they generate and the needs they serve for their regions and the wider electricity grid.

Tongland Dam

Tongland Dam

Lanark’s power stations generate electricity through what’s called ‘run-of-the-river’ hydropower, which describes a scheme where there is no dam to stop and store water along the river.

Instead, water from a flowing river is diverted into a power station situated alongside the river. Here the water is used to spin a turbine connected to a generator, before being returned back to the river. Lanark’s two power stations are both positioned alongside naturally occurring waterfalls, which allow them to take advantage of the natural gravitational pressure.

“The Lanark stations run constantly,” says O&M Manager Stuart Ferns. “They will run as long as there is water in the river. And generally, there is always some water available.”

The Galloway system is different. It only generates power when there are peaks in electricity demand. To do this it operates a conventional storage hydro scheme where dams situated along the river are used to create small reservoirs. When demand for electricity peaks – typically between 5pm and 7pm – water is released from these reservoirs and used to spin turbines and generate electricity.

During the day both schemes are monitored and controlled from Glenlee Power Station, halfway down the Galloway route. As night falls, responsibility instead falls to the control room at Cruachan Power Station, more than 200 kilometres away. Around-the-clock monitoring in this way is important as the uncertainty of Scotland’s weather can have effects on the schemes, and on their surrounding environment.

Penstocks leading to Glenlee Power Station

Penstocks leading to Glenlee Power Station

Working with the landscape

Dumfries & Galloway and Lanarkshire are regions defined and dominated by their river systems. As such, extreme weather can lead to occasional natural flooding. The Lanark and Galloway schemes not only have to be diligent in working with extreme weather, but they can actually play a role in monitoring and managing it.

“The Galloway reservoirs help to alleviate flooding because they can store water and help to alleviate flooding downstream,” says Ferns.

Staff at the scheme work closely with local authorities, landowners and the Scottish Environment Protection Agency (SEPA), sharing their weather forecasting and reservoir level data to help them predict which areas will be affected and when roads might need to be closed or even villages evacuated.

The team takes a similar approach to monitoring and protecting the local wildlife. Fish, such as north Atlantic salmon and trout, migrate upstream from the ocean through the Galloway Rivers using manmade fish passes (also known as ‘fish ladders’), which allow fish to bypass dams along the scheme.

Lanark hydro site, River Clyde

Waterfalls on the Clyde at Lanark

Lanark’s natural waterfalls mean it is not a route taken by migratory fish. However, ensuring there is always enough water in the rivers to protect fish and plant life factors into how both schemes operate with the landscape.

Working with the wildlife, weather and surrounding environment of the two rivers have always been a part of running the Lanark and Galloway schemes. Their continued role in the region’s electricity system highlights the relevancy of small-scale hydropower, even as demand for electricity grows.

Capacity Market agreements for existing assets and review of coal generation

31 January 2020

Investors
Drax's Kendoon Power Station, Galloway Hydro Scheme, Scotland

RNS Number : 6536B

T-3 Auction Provisional Results

Drax confirms that it has provisionally secured agreements to provide a total of 2,562MW of capacity (de-rated 2,333MW) from its existing gas, pumped storage and hydro assets(1). The agreements are for the delivery period October 2022 to September 2023, at a price of £6.44/kW(2) and are worth £15 million in that period. These are in addition to existing agreements which extend to September 2022.

Drax did not accept agreements for its two coal units(3) at Drax Power Station or the small Combined Cycle Gas Turbine (CCGT) at Blackburn Mill(4) and will now assess options for these assets, alongside discussions with National Grid, Ofgem and the UK Government.

A new-build CCGT at Damhead Creek and four new-build Open Cycle Gas Turbine projects participated in the auction but exited above the clearing price and did not accept agreements.

T-4 Auction

Drax has prequalified its existing assets(5) and options for the development of new gas generation to participate in the T-4 auction, which takes place in March 2020. The auction covers the delivery period from October 2023.

CCGTs at Drax Power Station

Following confirmation that a Judicial Review will now proceed against the Government, regarding the decision to grant planning approval for new CCGTs at Drax Power Station, Drax does not intend to take a Capacity Market agreement in the forthcoming T-4 auction. This project will not participate in future Capacity Market auctions until the outcome of the Judicial Review is known.

Enquiries:

Drax Investor Relations
Mark Strafford
+44 (0) 7730 763 949

Media:

Drax External Communications
Matt Willey
+44 (0) 0771 137 6087

Photo caption: Drax’s Kendoon Power Station, Galloway Hydro Scheme, Scotland

Website: www.drax.com/uk

Winter on the Hollow Mountain

15 January 2020

Power generation
Winter snow scene around the Hydro electric Dam on Ben Cruachan,above Loch Awe, Argyll, Scotland

Scotland’s landscape is defined by its weather. The millennia of wind, rain and snow has battered the country, ebbing away at its rivers, mountains, valleys and deep lochs forged by ice ages and volcanos. Weather also plays an important role in the country’s power generation. The country has more than 9 gigawatts (GW) of installed wind power – enough to sometimes meet double Scotland’s electricity demand – as well as having a long history of hydropower.

But while it is an intrinsic part of the country, Scotland’s weather can be anything but pleasant. Rain can be persistent and when the temperature drops in winter, it turns to snow – a lot of it. Scotland gets more snow than any other part of the UK.

Scottish poet Robert Burns described the harshness of the winter months in his 1781 poem Winter A Dirge:

“The wintry west extends his blast,

And hail and rain does blaw;

Or the stormy north sends driving forth

The blinding sleet and snaw:”

Sleet and ‘snaw’ (snow) fall occurs on average for 38 days a year in Scotland, compared to an average of 23 days across the rest of the United Kingdom, and can remain covering mountaintops long into spring.

Ben Cruachan Mountain

Ben Cruachan

The peak of Ben Cruachan in the Western Highlands is no exception. Cruachan Power Station, on the slopes of the mountain, however, must be ready to either generate or absorb electricity through all forms of weather – even the most severe.

“On a few occasions the snowfall has been so extreme that we’ve been unable to access the dam for a few weeks at a time,” says Gordon Pirie, a Civil Engineer at Cruachan. “Thankfully, we have enough controls in place where we are still able to monitor and operate things remotely.”

Mountain road from Cruachan Power Station to its dam blocked due to snow

Mountain road from Cruachan Power Station to its dam blocked due to snow

This mountainside location and winter weather can make for tough working conditions, but Cruachan is designed to handle it. In fact, in some cases it benefits from it.

Taking advantage of wet weather

Cruachan is built around the geography and climate of the Highlands. It stores water in an upper reservoir 400 meters (1,312 feet) up Ben Cruachan and uses its elevation to run it down the mountain, spin a turbine and generate power.

And when there is excess electricity being generated nationally, the same turbines reverse and use the excess electricity to pump water from Loch Awe up to the reservoir, helping to balance the grid. This acts as a form of energy storage by essentially stockpiling the excess electricity in the form of water held in the top reservoir.

For the most part the water used to generate electricity comes exclusively from Loch Awe and is passed up and down the mountain. However, 10% of it comes for ‘free’, as it’s collected from natural rainfall and surface water that makes its way to the upper reservoir through Cruachan’s aqueducts. This system of 14 kilometres of interconnected concrete pipes covers a 23 square kilometre radius around the reservoir and is designed to bring in water from 75 intakes dotted around the top of the mountain.

A North of Scotland Hydro-Electric Board diagram from c.1960s showing the aqueducts feeding Cruachan’s dam; click to view/download.

A North of Scotland Hydro-Electric Board diagram from c.1960s showing the aqueducts feeding Cruachan’s dam; click to view/download.

Some of these intakes are as small as street drains, while others are large enough to drive a Land Rover into. It’s part of Pirie’s job to keep them in good working order so they continue to deliver water to the reservoir. As the intakes are scattered around the mountaintop, they must be able to deal with whatever the Scottish winter throws at them.

Gordon Pirie, Civil Engineer and Cruachan Power Station dam

Gordon Pirie, Civil Engineer and Cruachan Power Station dam

“Even in freezing conditions the water will still flow through the aqueduct system, the intakes have a built-in feature which allows the water to flow into them even if the surface is frozen solid,” explains Pirie. “Any snow or frost on the ground eventually thaws and makes its way to the reservoir.”

As spring arrives and snow begins to thaw across the Highlands, greater volumes of water will run off into the reservoir and the power station’s engineers work to manage the water level.

Keeping water pressure under control

Cruachan Dam

Thawing snow can bring greater volumes of water into the reservoir.

The power station must be able to pump water and absorb excess electricity from the grid at a moment’s notice. This ability to turn excess electricity into stored energy makes Cruachan hugely useful in controlling the grid’s voltage, frequency and in keeping it stable. However, there must be enough space available in the reservoir for the water being pumped up the mountainside to enter – even when excessive rainfall or melting snow begins to naturally fill it up.

The power station can control the reservoir levels through a number of means. This includes the ability to close off an aqueduct, or to run the turbines without generating electricity so the team can move water from the reservoir into Loch Awe below.

If the water level and pressure on the dam reaches dangerous levels a ‘dispenser valve’ can be opened in an emergency, sending a jet of water flying out the dam to cascade safely down the mountainside. However, outside of testing, this has never been necessary to do.

And while the weather might be the most persistent natural force the power station must deal with, it’s not the only one. “Recently we had an issue with a bat roosting within one of the tunnels in which we were carrying out stabilisation works,” recalls Pirie. “It was looking for a suitable location to hibernate for the winter and the tunnel provided the ideal environment. We had to stop works to have a bat survey undertaken and apply for a bat license.”

Cruachan’s location makes for stunning views of the Highlands, but occasionally brutally cold and perilously wet conditions come with the territory. For the power station team, working with the sometimes-despairing weather is all part of what allows the Hollow Mountain to operate as it has done for more than half a century.

The Highlands around Ben Cruachan are rich with wildlife. Educational information on area’s flora and fauna can be explored at the Cruachan Power Station visitor centre.

The Highlands around Ben Cruachan are rich with wildlife. Educational information on area’s flora and fauna can be explored at the Cruachan Power Station visitor centre.

Visit Cruachan — The Hollow Mountain to take the power station tour.

The men who built a power station inside a mountain

12 November 2019

Power generation
Cruachan tunnel tigers

Travelling through the Highlands towards the West Coast of Scotland, you pass the mighty Ben Cruachan – its 1,126 metre peak towers over the winding Loch Awe beneath. It is the natural world on a huge scale, but within its granite core sits a manmade engineering wonder: Cruachan Power Station.

Opened by The Queen in 1965, it is one of only four pumped-hydro stations in the UK and today remains just as impressive an engineering feat as when it was first opened.

Cruachan is operated safely and hasn’t had a lost time injury in 15 years. The robust health and safety policies and practices employed at the power station were not in place all those decades ago.

It took six years to construct, enlisting a 4,000-strong workforce who drilled, blasted and cleared the rocks from the inside of the mountain, eventually removing some 220,000 cubic metres of rubble. The work was physically exhausting – the environment dark and dangerous.

Nicknamed the ‘Tunnel Tigers’, the men that carried the work out came from far and wide, attracted to its ambition as well as a generous pay packet reflective of the danger and difficulty of the work. But few of them were fully prepared for the extent of the challenge.

One labourer, who started at Cruachan just after his 18th birthday, recalls: “I was in for a shock when I went down there. The heat, the smoke – you couldn’t see your hands in front of you.”

Inside the mountain

The work of hollowing out Ben Cruachan was realised by hand-drilling two-to-three metre deep holes into the granite rockface. An explosive known as gelignite, which can be moulded by hand, was packed into the drilled holes and detonated. The blasted rocks were removed by bulldozers, trucks and shovels, before drilling began on the fresh section of exposed granite. In total, 20km of tunnels and chambers were excavated this way, including the kilometre-long entrance tunnel and the 91-metre-long, 36-metre-high machine hall.

Wilson Scott was just 18 when he got a job working as a labourer at Cruachan while the machine hall was being cleared out.

“The gelignite, it had a smell. Right away I was told not to put it near your face,” he says, “It’ll give you a splitting headache and your eyes will close with the fumes that come off it. It was scary stuff.”

This process allowed for rapid expansion through the mountain. With three or four blasts each 12-hour shift, some 20 metres of rock could be cleared in the course of a day. Activity was constant, and to save the men having to make the journey back up to the surface, refreshments came to them.

“There was a bus that went down the tunnel at 11 o’clock with a huge urn of terrible tea,” says Scott. “Most of the windows were out of the bus because the pressure of the blasting had blown them in.”

The tea did little to make the environment hospitable, however. From the water dripping through the porous rocks making floors slippery and exposed electrics vulnerable, to the massive machinery rushing through the dense dust and smoke, danger was ever-present. Loose rocks as large as cars would often fall from exposed walls and ceilings while the regular blasting gave the impression the entire mountain was shaking.

“I’ll tell you something: going into that tunnel the first time,” Scott says. “It was a fascinating place, but quite a scary place too.

Above them, on top of the mountain, a similarly intrepid team tackled a different challenge: building the 316-metre-long dam. They may have escaped the hot and humid conditions at the centre of Cruachan, but their task was no less daunting.

Cruachan dam construction, early 1960s

Cruachan dam construction, early 1960s

On top of the dam

Out in the open, 400 metres above Loch Awe, the team were exposed to the harsh Scottish elements. John William Ross came to Cruachan at the age of 35 to work as a driver and spent time working in the open air of the dam. “You’d get oil skins and welly boots, and that was it. We didn’t have gloves, if your hands froze – well that’s tough luck isn’t it.” Mr Ross sadly passed away recently.

Charlie Campbell, a 19-year-old shutter joiner who worked on the dam found an innovative way around the cold. “You’d put on your socks, and then you’d get women’s tights and you’d put them over the top of the socks, and then you’d put your wellies on and that’d keep your feet a wee bit warmer. We thought it did anyway. Maybe it was just the thought of the women’s stockings.”

Pouring the concrete of the dam – almost 50 metres high at its tallest point – was precarious work, especially given the challenges of working with materials like concrete and bentonite (a slurry-like liquid used in construction).

“It was horrible stuff. It was like diarrhoea, that’s the only way of explaining it,” says Campbell. “There was a boy – Toastie – I can’t remember his real name. He fell into it. They had quite a job getting him out, they thought he was drowned, but he was alright.”

Many others were not alright. The danger of the work and conditions both inside and on top of the mountain meant there was a significant human cost for the project. During construction, 15 people tragically lost their lives.

Today a carved wooden mural hangs on the wall of the machine hall to capture and commemorate the myth of the mountain and the men who sadly died – a constant reminder of the bravery and sacrifice they made.

The men that made the mountain

The Cruachan ‘Tunnel Tigers’

The Tunnel Tigers were united in their efforts, but came from a range of backgrounds and cultures. Polish and Irish labourers worked alongside Scots, as well as displaced Europeans, prisoners of the second world war and even workers from as far as Asia. The men would work 12, sometimes 18-hour shifts, seven days a week. Campbell adds that some men opted to continue earning rather than rest by doing a ‘ghoster’, which saw them working a solid 36 hours.

Many men would make treble the salary of their previous jobs, with some receiving as much as £100 a week, at a time when the average pay in Scotland was £12. Some teams’ payslips were stamped with the words ‘danger money’ – illustrative of the men’s motivation to endure such life-threatening work.

While it was a dangerous and demanding job, many of the Tigers look back with fond memories of their time on the site and many stayed in the area for years after. “It was an experience I’m glad I had,” says Scott. “It puts you in good stead for the rest of your days.”

As for Cruachan Power Station, its four turbines are still relied on today by Great Britain to balance everyday energy supply. As the electricity system continues to change, the pumped hydro station’s dual ability to deliver 440 megawatts (MW) of electricity in just 30 seconds, or absorb excess power from the grid by pumping water from Loch Awe to its upper reservoir, is even more important than when it opened.

Standing at the foot of a mountain more than 50 years ago, the men about to build a power station inside a lump of granite may have found it unlikely their work would endure into the next millennium. They may have found it unlikely it was possible to build it at all. But they did and today it remains an engineering marvel, a testament to the effort and expertise of all those who made it.

Visit Cruachan – The Hollow Mountain

A brief history of Scottish hydropower

1 October 2019

Power generation
The Clatteringshaws Dam in the Galloway Forest Park in south west Scotland. Built by Sir Alexander Gibb & Partners in 1932-38, it is on the south west

Over the last century, Scottish hydro power has played a major part in the country’s energy make up. While today it might trail behind wind, solar and biomass as a source of renewable electricity in Great Britain, it played a vital role in connecting vast swathes of rural Scotland to the power grid – some of which had no electricity as late as the 1960s. And all by making use of two plentiful Scottish resources: water and mountains.

But the road to hydro adoption has been varied and difficult, travelled on by brave death-defying construction workers, ingenious engineers and the inspirational leadership of a Scottish politician.

To trace where the history of Scottish hydropower began, we need to go back to the end of the 19th Century and to the banks of Loch Ness.

Loch Ness, Scottish Highlands

Loch Ness, Scottish Highlands

From abbeys to aluminium

It was on the shores of Loch Ness that one of the first known hydro-electric schemes was built at the Fort Augustus Benedictine abbey. The scheme provided power to the monks living there as well as 800 village residents – though legend has it that their lights went dim every time the monks played their organ.

However, it was the British Aluminium Company, formed in 1894, that first realised the huge potential of Scotland’s steep mountains, lochs and reliably heavy rainfall to generate substantial amounts of hydro power. In need of a reliable source of electricity to help turn raw bauxite into aluminium, the firm established a hydro-electric plant and smelting works at Foyers and Loch Ness. Several similar schemes to support the aluminium industry soon appeared around the country.

But it took another 20 years for the first major hydro-power project to supply electricity to the public to emerge.

In 1926, the Clyde Valley Electrical Power Co. opened the Lanark Hydro Electric Scheme, which used energy from the River Clyde’s flow to create power. Now owned by Drax, it still has a generation capacity of 17 MW – enough to supply more than 15,000 homes.

River Clyde, Lanark

It was quickly followed by power stations at Rannoch and Tummel in the Grampian mountains and, in 1935, by what became a highly influential scheme in the history of Scottish hydro power at Galloway.

Drawing enough energy from local rivers to support five generating power stations, the project was the largest run-of-the-river scheme ever created. Architecturally, it also set the tone for later projects with stylised dams and modernist turbine halls.

A fairer share of power for the Highlands

The Galloway scheme supplied energy to a wide area, too, including parts of the central Highlands. Scottish Labour MP Tom Johnston, a staunch socialist and Scottish patriot saw how this new power source could provide massive benefits to northern communities. In the early 1940s, only an estimated one in six Scottish farms and one in a hundred small land crofts had electricity.

In 1941, Johnston became Scotland’s Minister for State with a vision, as he put it, to create “large-scale reforms that might mean Scotia Resurgent”. Expanding hydro power was a priority.

Tom Johnston MP

Two years later, he formed the North of Scotland Hydro-Electric Board (NSHEB). Its aim was to create several new schemes, including at Tummel and Loch Sloy, that would supply the national grid and bring electricity to more rural Scottish areas.

The projects were met with fierce opposition from landowners and local pressure groups who feared new dams and power stations would ruin the countryside and bring unwelcome industrialisation.

Public enquiries followed, but the board’s promises that the developments would be sensitive to the environment and bring cheap electricity in areas such as the Isle of Skye and Loch Ewe eventually won the day.

Thousands of local men, as well as German and Italian former prisoners of war, were drafted in to work on the projects.

Among the most courageous were workers known as ’Tunnel Tigers’ who blasted away rock using handheld drills and gelignite to create water channels and underground chambers, including at Drax’s Cruachan pumped storage hydro station.

Deaths caused by everything from blast injuries to fires were common. The men also had to cope with incessant rain and cold, and were housed in bleak military-style camps. With little to do in their spare time, besides drink, fights would break out regularly.

But the financial rewards were enormous, with wages up to ten times higher than labourers employed on Highland estates could expect.

Glenlee penstocks

The future takes shape

The board’s first small projects were completed in 1948 at Morar and Nostie Bridge, supplying electricity to areas including parts of Wester Ross. Catherine Mackenzie, a local widow, performed the Morar opening ceremony, reportedly declaring: “Let light and power come to the crofts.”

Bigger schemes were plagued by problems. Conveyor belts had to be built to transport stone across 1.75 miles of moor during construction at Sloy, for instance, and there were frequent stone and timber shortages.

But Sloy eventually opened in 1950, the largest conventional hydro electrical power station in Great Britain with an installed capacity of 128 MW. It would be followed by major schemes at Glen Affric and Loch Shin.

By the mid Sixties, the Board had built 54 main power stations and 78 dams. Northern Scotland was now 90% connected to the national grid. Hydro Board shops began popping up on high streets, selling appliances and collecting bill payments.

Tom Johnston died in 1965, aged 83. The Provost of Inverness declared: “No words can say how grateful we are.”

Cruachan Power Station

Loch Awe beside Cruachan Power Station

That same year, the world’s then largest reversible pumped storage power station opened at Cruachan. During times of low electricity demand, its turbines pump water from Loch Awe to the reservoir above. When demand rises, the turbines reverse, and water flows down to generate power. A similar scheme opened at Foyes in 1974.

Glendoe, near Loch Ness, was the most-recent major hydro scheme to be built. Opening in 2009, it has a generation capacity of 100 MW.

There are plans for a pumped storage scheme at Coire Glas, with a storage capacity of 30 GWh– more than doubling Great Britain’s current total pumped storage capacity. Drax’s Cruachan Power Station could also be expanded.

In recent years, however, the real growth has been in smaller hydro-electric schemes that may power just one or a handful of properties – with more than 100 MW of such generation capacity installed in the Highlands since 2006.

Boosting the environment and economy

Scotland now provides 85% of Great Britain’s hydro-electric resource, with a total generation capacity of 1,500 MW. Improved power supplies have attracted more industry to the Highlands, without seriously altering its character. And access roads created during hydro-power schemes’ construction have opened up remote areas to tourism.

For many, the dams built by NSHEB are among the greatest construction achievements in post-war Europe and remain an essential part of Great Britain’s attempts to move towards a low-carbon energy future.

In energy storage timing is everything

21 August 2019

Power generation
Cruachan Power Station

Electricity is unlike any other resource. The amount being generated must exactly match demand for it, around the clock.

Managing this delicate balancing act is the job of the National Grid Electricity System Operator (ESO), which works constantly to ensure supply meets demand and the grid remains balanced. One of the ways it does this is by storing energy when there is too much and deploying it when there is too little.

Although there are many different ways of storing energy at a small scale, at grid level it becomes more difficult. One of the few ways it is currently possible is through pumped hydro storage. Cruachan Power Station in the Highlands of Scotland is one of four pumped storage facilities in Great Britain. It uses electrically-driven turbines to pump water up a mountain into a reservoir when there is excess electricity on the grid, and then releases the water stored in the reservoir back down, to spin the same turbines to generate power when it’s needed quickly.

The dual capabilities of these turbines are unique to pumped hydro storage and contribute to the overall grid’s stability. However, what dictates when Cruachan’s turbines switch from pump to generate and vice versa is all a matter of what the grid needs – and when.

The switch from pump to generate

While the machine hall of Cruachan Power Station is an awe-inspiring place for its size and location 396 metres beneath Ben Cruachan, it generates electricity much like any other hydropower station: harnessing the flow of water to rotate any number of its four 100+ megawatt (MW) turbines.

This mode – simply called ‘generate mode’ – is usually employed during periods of peak power demand such as mornings and evenings, during a major national televised event, or when wind and solar energy output drops below forecast. As a result, starting up and generating millions of watts of electricity has to be fast.

“It takes just two minutes for a turbine to run up from rest to generate mode,” says Martin McGhie, Operations and Maintenance Manager at the power station. “It takes slightly longer for the turbines to run down from generate to rest, but whatever function the turbines are performing, they can reach it within a matter of minutes.”

The reverse of generate mode is pump mode, which changes the direction of travel for the water, this time using electricity from the grid to pump water from the vast Loch Awe at the foot of Ben Cruachan to the upper reservoir, where it waits ready to be released.

In contrast to generate mode, pump mode typically comes into play at times when demand is low and there is too much power on the system, such as during nights or at weekends, when there is excessive wind generation. However, the grid has evolved since Cruachan first began generating in 1965 and this has changed when it and how it operates.

“In the early days, Cruachan was used in a rather predictable way: pumping overnight to absorb excess generation from coal and nuclear plants and generating during daytime peak periods,” says Martin. “The move to more renewable energy sources, like wind, mean overall power generation is more unpredictable.”

He continues: “There has also been a move from Cruachan being primarily an energy storage plant to one which can also offer a range of ancillary services to the grid system operator.”

The benefits of Spin mode

In between pumping water and generating power, Cruachan’s turbines can also spin in air while connected to the grid, neither pumping not generating. This is essentially a ‘standby mode’ where the turbines are ready to either quickly switch into generation or pumping at a moment’s notice (they spin one way for ‘spin pump’; the other for ‘spin generate’). These spin modes are requested by the ESO to ensure reserve energy is available to respond rapidly to changes on the grid system.

In spin generate mode, the generator is connected up to the grid but the water is ejected from the space around the turbine by injecting compressed air. The turbine does not generate power but is kept spinning, allowing it to quickly start up again. As soon as the grid has an urgent need for power, the air is released and the water from the upper reservoir flows into the turbine to begin generation in under 30 seconds.

Spin pump works on the same basis as spin generate, but with the turbine rotating in the opposite direction, ready to pump at short notice. This allows Cruachan to absorb excess generation and balance the system as soon as the ESO needs it.

“The use of spin mode by the ESO is highly variable and dependant on a number of factors e.g. weather conditions or the state of the grid system at the time” says Martin. This unpredictability of the increasingly intermittent electricity system makes the flexibility of Cruachan’s multiple turbines all the more important.

Ready for the future grid

It’s not only the types of electricity generation around the system that are changing how Cruachan operates. Martin suggests that the way energy traders and the ESO use Cruachan will continue to evolve as the market requirements and opportunities change.

Technology is also changing the market and Martin predicts this could affect what Cruachan does. “In the future we will face competition from alternative storage technologies, such as batteries, electric vehicles, as well as competition for the other ancillary services we offer.”

However, Cruachan’s flexibility to generate, absorb or spin in readiness means it is prepared to adjust to any future changes.

“Cruachan is always ready to modify or upgrade to meet requirements, as we have done in the past,” says Martin. “The priority is always to be able to deliver the services required by the grid system operator – in characteristic quick time.”

Visit Cruachan — The Hollow Mountain to take the power station tour.

Read our series on the lesser-known electricity markets within the areas of balancing services, system support services and ancillary services. Read more about black start, system inertia, frequency response, reactive power and reserve power. View a summary at The great balancing act: what it takes to keep the power grid stable and find out what lies ahead by reading Balancing for the renewable future.

What makes a mountain right for energy storage

22 May 2019

Power generation
Cruachan pylons

Electricity generation is often tied to a country’s geography, climate and geology. As an island Great Britain’s long coastline makes off-shore wind a key part of its renewable electricity, while Iceland can rely on its geothermal activity as a source of power and heat.

One of the most geographically-influenced sources of electricity is hydropower. A site needs a great enough volume of water flowing through it and the right kind of terrain to construct a dam to harness it. Even more dependent on the landscape is pumped hydro storage.

Pumped storage works by pumping water from one source up a mountain to a higher reservoir and storing it. When the water is released it rushes down the same shafts it was pumped up, spinning a turbine to generate electricity. The advantage of this is being able to store the potential energy of the water and rapidly deliver electricity to plug any gaps in generation, for example when the wind suddenly dropsor when Great Britain instantly requires a lot more power.

This specific type of electricity generation can only function in a specific type of landscape and the Scottish Highlands offers a location that ticks all the boxes.

The perfect spot for pumped storage

Cruachan Power Station, a pumped hydro facility capable of providing 440 megawatts (MW) of electricity, sits on the banks of Loch Awe in the Highlands, ready to deliver power in just 30 seconds.

“Here there is a minimum distance between the two water sources with a maximum drop,” says Gordon Pirie, Civil Engineer at Cruachan Power Station, “It is an ideal site for pumped storage.”

The challenge in constructing pumped storage is finding a location where two bodies of water are in close proximity but at severely different altitudes.

From the Lochside, the landscape rises at a dramatic angle, to reach 1,126 metres (3,694 feet) above sea level at the summit of Ben Cruachan, the highest peak in the Argyll. The crest of Cruachan Dam sits 400.8 metres (1,315 feet) up the slopes, creating a reservoir in a rocky corrie between ridges. The four  100+ MW turbines, which also act as pumps, lie a kilometre inside the mountain’s rock.

“The horizontal distance and the vertical distance between water sources is what’s called the pipe-to-length ratio,” explains Pirie. “It’s what determines whether or not the site is economically viable for pumped storage.”

The higher water is stored, the more potential energy it holds that can be converted into electricity. However, if the distance between the water sources is too great the amount of electricity consumed pumping water up the mountain becomes too great and too expensive.

The distance between the reservoir and the turbines is also reduced by Cruachan Power Station’s defining feature: the turbine hall cavern one kilometre inside the mountain…

Carving a power station out of rock

The access tunnel, cavern and the networks of passageways and chambers that make up the power station were all blasted and drilled by a workforce of 1,300 men in the late 1950s to early 1960s, affectionately known as the Tunnel Tigers.

This was dangerous work, however the rock type of the mountainside was another geographic advantage of the region. “It’s the diorite and phyllite rock, essentially granite, so it’s a hard rock, but it’s actually a softer type of granite, and that’s also why Cruachan was chosen as the location,” says Pirie.

The right landscape and geology was essential for establishing a pumped storage station at Cruachan, however, the West Highlands also offer another essential factor for hydropower: an abundance of water.

Turning water to power

The West Highlands are one of the wettest parts of Europe, with some areas seeing average annual rain fall of 3,500 millimetres (compared to 500 millimetres in some of the driest parts of the UK). This abundance of water from rainfall, as well as lochs and rivers also contributes to making Cruachan so well-suited to pumped storage.

The Cruachan reservoir can contain more than 10 million cubic metres of water. Most of this is pumped up from Loch Awe, which at 38.5 square kilometres is the third largest fresh-water loch in Scotland. Loch Awe is so big that if Cruachan reservoir was fully released into the loch it would only increase the water level by 20 centimetres.

However, the reservoir also makes use of the aqueduct system made up of 19 kilometres of tunnels and pipes that covers 23 square kilometres of the surrounding landscape, diverting rainwater and streams into the reservoir. Calculating quite how much of the reservoir’s water comes from the surrounding area is difficult but estimates put it at around a quarter.

“There are 75 concrete intakes dotted around the hills to gather water and carry it through the aqueducts to the reservoir,” says Pirie. “The smallest intake is about the size of a street drain in the corner of a field and the largest one is about the size of a three-bedroom house.”

Pumped storage stations offer the electricity system a source of extra power quickly but it takes the right combination of geographical features to make it work. Ben Cruachan just so happens to be one of the spots where the landscape makes it possible.

Is there such a thing as energy ‘terroir’?

16 April 2019

Power generation

‘Terroir’ comes from the French word ‘terre’, meaning land, earth or soil. In the French wine industry, it refers to the land from which grapes are grown. It is believed the terroir gives the grapes a unique quality specific to that particular growing site.

Terroir dictates the type of wine that comes from a region – it’s the reason we call one bottle a Bordeaux, and another a Côtes Du Rhone.

But could the idea of terroir hold relevance beyond just wine? What if we looked at electricity in the same way?

Certain environments are better placed to produce certain types of electricity.

These are some of the regions making the most of their unique location and landscape to produce electricity that makes sense for them.

La Rance tidal barrage

Brittany, France

Brittany boasts one third of mainland France’s coasts, and has long been a top destination for surfers, with waves as high as 7.6 metres in some places. With such tempestuous waters, it’s the perfect location for La Rance Tidal Power Station –the world’s first station of its kind. Opened in 1966, the site was chosen because it has the highest tidal range in France.

Tidal barrages like La Rance harness the potential energy in the difference in height between low and high tides.

The barrage creates an artificial reservoir to enable different water levels, which then drives turbines and generators to produce electricity.

While the station has been operating for close to 50 years, old tidal mills are still dotted around the Rance river, some dating back to the 15th century – proof that tidal power has deep roots in this region.

Xinjiang, China

Whilst China may have some of the world’s most polluted cities, it is also the world’s biggest producer of renewable energy – including wind power. With one of the largest land masses on the planet, one in every three of the world’s wind turbines is in China, with the government installing one per hour in 2016.

In places like Xinjiang, China’s most westerly province, the windy weather used to be a nuisance, with overturned lorries and de-railed trains being a regular sight. This is caused by mountain ranges between Dabancheng and Ürümqi which form a natural wind tunnel, increasing the wind speed as air passes through. These days the region is harnessing this same wind to produce incredible amounts of electricity – with 27.8 terwatt hours (TWh) of electricity coming from the region in the first nine months of 2018.

Onshore wind farm in Xinjiang

Xinjiang local Wu Gang founded Goldwind to build China’s first windfarm here in the 1980s. Today it’s the world’s second largest turbine maker. The turbines work on a simple premise: wind turns the turbine blades which are connected to a rotor, causing it to spin. This in turn is connected to a generator, which takes the wind’s kinetic energy to produce electricity.

Hengill, Iceland

Iceland sits where the North American and Eurasian tectonic plates meet, meaning that magma rises close to the surface, bringing with it a lot of energy potential. One example of how the Icelandic people are harnessing this power is The Hellisheiði, the second largest geothermal power station in the world.

Here, high-pressure geothermal steam is extracted from 30 wells, ranging from 2,000 to 3,000 metres deep, and is used to turn turbines and generate electricity. This renewable plant has a capacity of 303 megawatts (MW) of electricity, which is used to power the capital city of Reykjavik.

The site was chosen due to its location in the Hengill volcanic area in the south of Iceland, one of the most active geothermal areas on the planet. Here, a giant magma chamber sits underground, with thousands of hot springs above. According to Iceland’s National Energy Authority, geothermal power from sites like this accounts for 25% of the country’s electricity production and 66% of primary energy usage.

But Icelanders aren’t only using the geothermal landscape for energy production – chefs here can cook food simply by burying it in the ground, producing delicacies like rúgbrauð, which translates as ‘hot spring bread’.

Ouarzazate, Morocco

From Iceland’s below-zero temperatures to Morocco, a popular holiday destination for sun-seekers, with 330 days of sunshine a year. Morocco lays claim to a chunk of the Sahara Desert, famously known as one of the hottest climates in the world. Where better, then, to situate the world’s largest solar thermal power plant?

Noor solar thermal plant

The Moroccan city of Ouarzazate, nicknamed the ‘door of the desert’ plays host to the huge Noor Complex, which is still under construction and is being implemented in four parts. The latest piece of the puzzle is Noor III, which was hooked up to Morocco’s electricity grid last year. Here, 7,400 mirrors reflect sun rays onto Noor III’s tower, the highest solar-thermal tower in the world, concentrating at the top of the building to create around 500ºC of heat. This heats up the molten salts inside the tower, which travel through a series of pipes, creating high pressure steam. This steam then moves a turbine to generate electricity.

Molten salts are used at Noor III because they can operate at high temperatures and store heat effectively, so that the site can continue to produce energy for up to 7.5 hours when there’s no sun. Once up and running, the plant will generate enough energy to power 120,000 homes with no atmospheric emissions of carbon dioxide (CO2). Along with the other projects at the Noor Complex, Noor III is helping Morocco to achieve its goal of obtaining 42% of its power from renewable sources by 2020.

Ben Cruachan, Scotland

The sun rays that shine on the Noor Complex are few and far between in the Highlands, but there are mountains a-plenty – Ben Cruachan being one of them. Ben Cruachan is the highest point in the Argyll and Bute area of Scotland and is right next to the picturesque Loch Awe. This provides the backdrop for the world’s first high head reversible pumped-storage hydro scheme, built by British engineer Edward McColl over 50 years ago.

Cruachan Power Station’s reservoir and Loch Awe, viewed from the top of Ben Cruachan

With the help of a 4,000-strong army of workers nicknamed the Tunnel Tigers, McColl turned the slopes of Ben Cruachan into a geological battery which Great Britain still relies on today.

It works by using excess electricity on the national grid to pump water from Loch Awe at the foot of the mountain up to the Cruachan Reservoir 300 metres above. During times of heightened demand – like when everyone puts the kettle on during a Coronation Street ad break or when the wind speed suddenly drops around breakfast time – this water is released back down the mountain to turn the turbines that live inside the hollowed mountain.

In this way, Cruachan Power Station can meet the nation’s energy needs within seconds, whereas gas or nuclear stations would take many tens of minutes or hours to reach such capacity.

While Ben Cruachan lends itself perfectly to this pumped-storage hydro facility, it is only one of four such sites in the UK. The challenge in installing more is that there are only a few sites which are mountainous with suitably large bodies of water nearby – things that are inherently necessary for pumped-storage hydroelectricity.

The growing importance of ‘terroir’

All of these places embrace the land around them to produce energy in inventive ways, and as levels of decarbonisation grow around the world, there are an increasing number of places using what’s available close to home for energy solutions.

Take Barbados, a country that has traditionally relied on imported fossil fuels for 96% of its electricity. But with short driving distances and 220 days of pure sunlight every year, the government has seen the potential for electric vehicles run by solar power. With modular solar carports now a regular sight in Barbados, the island has become one of the world’s top users of EVs – preserving the picturesque landscape and reducing its dependence on imported petrol.

Solar panels above an office car park in Barbados

Meanwhile Palau, a small Pacific island nation, is building the world’s largest microgrid, consisting of 35 MW of solar panels and 45 MWh of energy storage. For a nation threatened by rising sea levels, making use of its geographic features allows it to work towards its 70% renewable energy target by 2050 and reduce its reliance on imports.

As more countries continue to move away from fossil fuels, taking advantage of their unique ‘terroir’ will increasingly enable them to produce electricity that works with their landscape.

The different ways water powers the world

10 April 2019

Power generation

If the spectacular Roman aqueducts that still dot the landscape of Europe tell us anything, it’s that hydraulic engineering is nothing new. For thousands of years water power has been used to grind wheat, saw wood, and even tell the time.

Craigside in Northumberland

By the 19th century, water was able to go beyond performing rudimentary mechanical tasks and generate electricity directly. Cragside in Northumberland, England  became the first house powered entirely by hydroelectricity in 1878. By 1881, the whole town of Niagara Falls on the US-Canada border was being powered by the force of its eponymous river and waterfall.

Hydropower has many advantages: it’s predictable, consistent, often zero or low carbon and it can provide a range of ancillary services to power transmission systems. In Great Britain, there is 1.7 gigawatts (GW) of installed hydropower and another 2.8 GW of pumped hydro storage capacity, but it remains a small part of the overall electricity mix. In the fourth quarter of 2018, the 65% of British hydropower that is connected to the national grid accounted for less than one per cent electricity generation or 545,600 megawatt hours (MWh). By contrast, wind accounted for 14% of total generation that quarter (almost 9.5 million MWh).

While hydropower projects can be expensive to construct, operational and maintenance costs are relatively low and they can run for an extremely long time – the Lanark Hydro Electric Scheme in Scotland, which Drax recently acquired, has been producing power since 1927.

Today, hydropower installations are found at all scales, all around the world. But the term hydropower covers many different types of facility. These are some of the ways water is used to generate electricity.

Impoundment power plants

The simplest and most recognisable form of hydropower, impoundment facilities, work by creating a reservoir of trapped water behind a dam that is then selectively released, the water flows through a turbine, spinning it, which in turn activates a generator to produce electricity.

From the Hoover Dam on the Nevada-Arizona border, to the Three Gorges Dam in China – the world’s largest power station of any type, with a generating capacity of 22.5 GW – impoundment dams are some of the most iconic structures in modern engineering.

Three Gorges Dam, China

As well as having the potential to provide large quantities of baseload power, they can react extremely quickly to grid demands – just by opening or closing their floodgates as the power system operator requires.

Run-of-river generation

Rather than storing and releasing power from behind a dam, run-of-the-river generators channel off part of a river and use its natural flow to generate power.

Tongland Power Station, Galloway Hydro Scheme

Because it doesn’t require large dams or reservoirs, run-of-river can be less environmentally disruptive, as there is not always a need for large scale construction and flooding is less common.

Stonebyres Power Station, Lanark Hydro Scheme

While run-of-river facilities tend to be smaller and less flexible than impoundment, they still have significant generating potential – the Jirau hydro-electric power plant on the Madeira river in Brazil has a generating capacity of 3.7 GW.

Pumped storage

Water can also be good for storing energy that can then be converted to electricity. Pumped hydro storage facilities operate by pumping water uphill to a reservoir when electricity is cheap or plentiful, then letting it flow back downhill through tunnels to a series of turbines that activate generators to generate electricity (in the same way as an impoundment dam) when electricity is in high demand.

Dam and reservoir, Cruachan Power Station

Their ability to both produce and absorb electricity makes them a vital part of electricity networks, playing the role of energy storage systems. In fact, a massive 97% of all global grid storage capacity is in the form of pumped hydro. Their function as giant batteries will only become more important as intermittent renewable sources like wind and solar become more prevalent in the energy mix.

Outlet and loch, Cruachan Power Station.

So too will their ability to ramp up generation very quickly. Drax’s recently acquired Cruachan Power Station in Scotland can go from zero to 100 MW or more in less than 30 seconds when generation is called upon – for example, when there is a sudden spike in demand.

Tidal range generation

Swansea Bay

The sea is also an enormous source of potential hydropower. Tidal range generation facilities exploit the movement of water levels between and high and low tide to generate electricity. Tidal dams trap water in bays or estuaries at high tide, creating lagoons. The dam then releases the water as the rest of the tide lowers, allowing it to pass through turbines, generating power.

There are limitations – like wind and solar’s dependence on the wind blowing and the level of sunlight, operators can’t control when tides go in or out. But its vast generating potential means that it could be a valuable source of baseload power if it were to be deployed more widely.

Great Britain in particular has major opportunities for tidal generation. The Severn Estuary between England and Wales has the second highest tidal range in the world (15 metres), and a barrage built across the estuary could have a generating capacity of up to 8.6 GW – enough to meet 6% of the Britain’s total electricity demands. Some environmental groups worry about the impact such projects could have on wildlife.

Due to the level of public funding required, the government rejected that plan in 2010, in favour of pursuing its nuclear policy. A second attempt at securing a government-backed investment contract, known as a CfD, for a smaller 320 MW ‘pathfinder’ project in Swansea Bay was also rejected, in 2018. The Welsh government is however supportive of the project, which already has planning permission.

Tidal stream generation

Rather than building a dam, tidal stream generators work like underwater wind turbines. Sturdy propellers or hydrofoils (wing-like blades which oscillate up and down rather than spinning around) are positioned underwater to transform the energy of tidal streams into electricity.

While tidal streams move far slower than wind, the high density of water compared to air means that more power is generated, even at much lower velocities.

Not reliant on large physical structures, tidal stream generators are a relatively cheap form of hydropower to deploy, and make a much smaller impact on their environment than tidal barrages.

Wave generation

Unlike tidal power, which is generated by the gravitational effects of the sun and moon on the Earth’s oceans, wave power ultimately comes from the winds that whip up the ocean’s surface.

There are a number of different methods that turn waves into generation, including funnelling waves into a tube floating on the surface of the water that contains electricity-generating turbines, or by using the vertical bobbing movement of a tethered buoy to pull and spin a fixed generator.

An electricity-generating buoy awaiting installation in Spain

Wave power has yet to be widely implemented, but it has significant potential. It’s estimated that the waves off the coasts of the USA could have provided 66% of the country’s electricity generation needs in 2017 alone. Effectively commercialising wave power could provide another vital tool in developing a sustainable energy landscape for the coming future.

Tidal and wave power generation are less established generation technologies than their land-based cousins but they hold huge potential in delivering more sources of reliable, zero emissions electricity for energy systems in coastal locations around the world.
